Product Overview

ARK AHF Active Harmonic Filters are the ultimate solution to power quality problems caused by waveform distortions, low power factor, voltage variations, voltage fluctuations, and load unbalance. They are high-performance, compact, flexible, modular, and cost-effective active power filters (APF) that provide an instantaneous and effective response to power quality issues in low or high voltage electric power systems.

The AHF working principle involves external CT detecting the load current. DSP as CPU has advanced logic control arithmetic, which can quickly track the instruction current, divide the load current into active power and reactive power using intelligent FFT, and calculate the harmonic content rapidly and accurately. Then it sends PWM signals to internal IGBT's driver board to control IGBT on and off at 20KHZ frequency. Finally, it generates opposite phase compensation current on the inverter induction. Meanwhile, the CT also detects the output current and provides negative feedback to the DSP. Then the DSP proceeds with the next logical control to achieve a more accurate and stable system.

Technical Specifications

Installation Types

• Wall-mounted：Space-saving design, convenient for installation in various industrial sites with limited space.

• Rack-mounted：Easy to be integrated into existing power system racks, suitable for centralized power distribution and control systems.

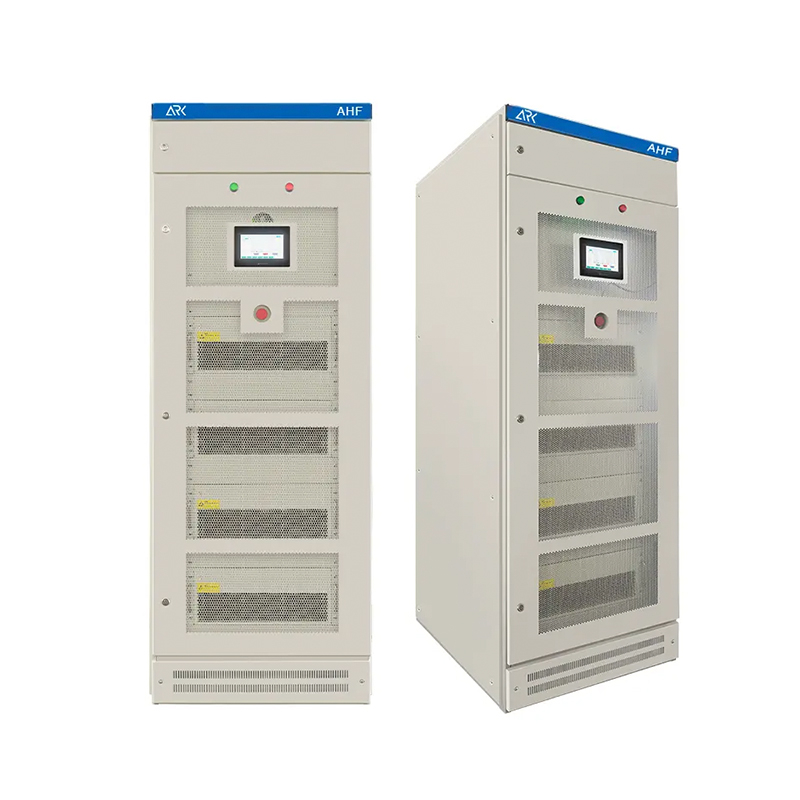

• Cabinet-mounted：Provides better protection and stability for the equipment, ideal for harsh industrial environments.

System Voltage

Available in a wide range of voltage classes including 0.22kV, 0.4kV, 0.5kV, and 0.69kV, catering to different voltage requirements of various industrial applications.

• Rated Capacity

Offers diverse capacity options from 23A up to 400A, allowing users to select the appropriate filter capacity based on the actual load conditions.

• Compensation Modes

Supports both three-phase three-wire and three-phase four-wire compensation modes to adapt to different power system configurations.

• Cooling Method

Forced air cooling ensures efficient heat dissipation during operation, maintaining stable performance of the equipment.

• Dimensions

• Rack-mounted AHF - 75 - 0.4 - 4L - R：675×495×275mm

• Cabinet-mounted AHF - 100 - 0.4 - 4L - C ：240×600×597mm

• Wall-mounted AHF - 50 - 0.4 - 4L - W：546×550×190mm

Applications

• Industrial Manufacturing：Ideal for various industrial equipment such as motors, frequency converters, and welding machines. It effectively reduces additional losses caused by harmonics, enhances equipment service life and operational efficiency.

• Data Centers：Ensures stable power supply for critical equipment like UPS systems and servers, minimizes the impact of harmonics on power quality, and guarantees data security and business continuity.

• Commercial Buildings ：Addresses harmonics generated by lighting systems, air conditioning systems, and elevators in malls and office buildings, improves overall power quality, and reduces energy losses.

Advantages and Features

• High Performance ：Rapid harmonic detection and compensation capabilities ensure stable power quality by accurately tracking and eliminating harmonics in a short time.

• Flexibility：Modular design allows for easy expansion and upgrade according to actual needs, adapting to power systems of different scales and complexities.

• Reliability：Stringent testing and validation ensure high reliability and long-term stable operation in harsh industrial environments, reducing maintenance costs and downtime.

• Energy-saving and Consumption Reduction：Effectively reduces additional losses caused by harmonics, improves energy utilization efficiency, and helps enterprises achieve energy-saving and emission reduction goals, reducing operational costs.

Factory Capabilities and Services

• Advanced Manufacturing Equipment：Equipped with state-of-the-art manufacturing and testing equipment to ensure the high-quality production of ARK AHF Active Harmonic Filters, meeting the demands of different customers.

• Customized Solutions ：Capable of providing customized product solutions based on special requirements of customers, including customization of dimensions, capacities, and functions.

• Professional Technical Support：A dedicated technical team offers comprehensive support, from product selection, installation, commissioning to maintenance, ensuring smooth operation of the products.
